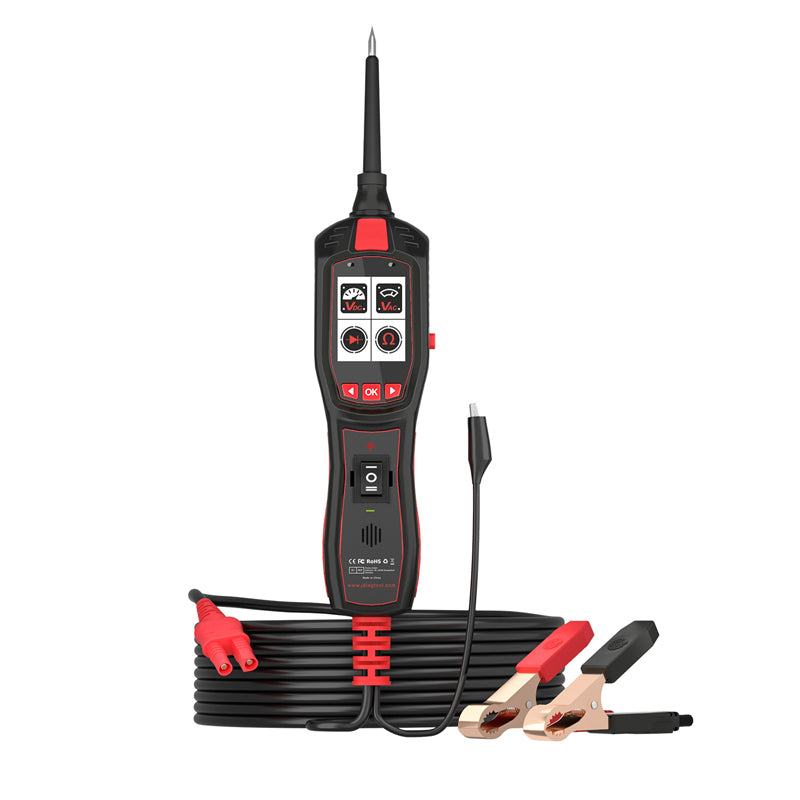

Automotive Power Circuit Probe Tester

FEATURES

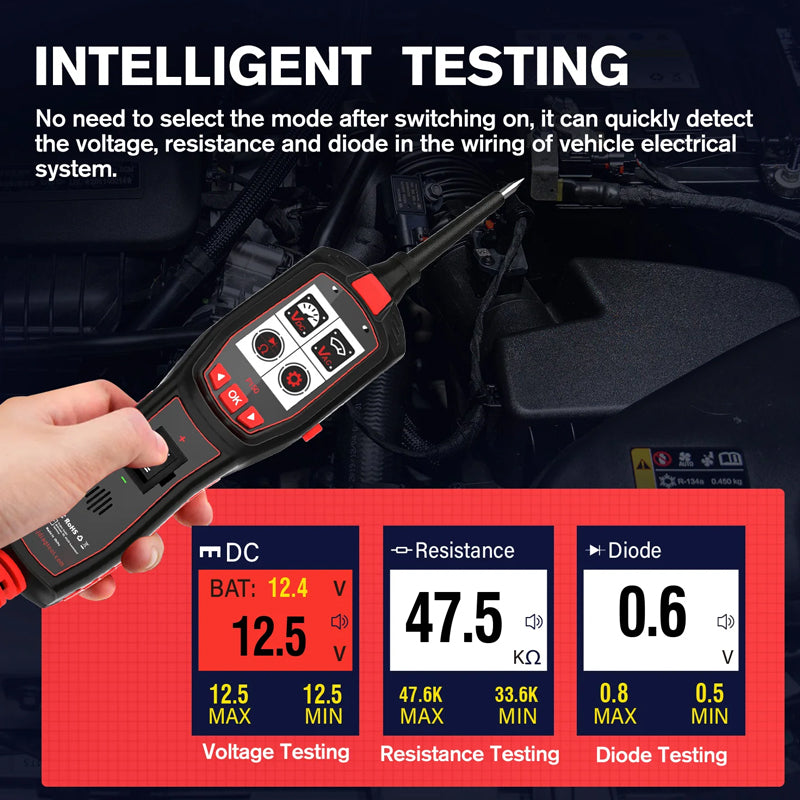

INTELLIGENT DIAGNOSIS - Automatically detects voltage, resistance, and diode without manual mode switching. This streamlines your workflow and provides quick, accurate readings, saving you valuable time on every vehicle electrical system check.

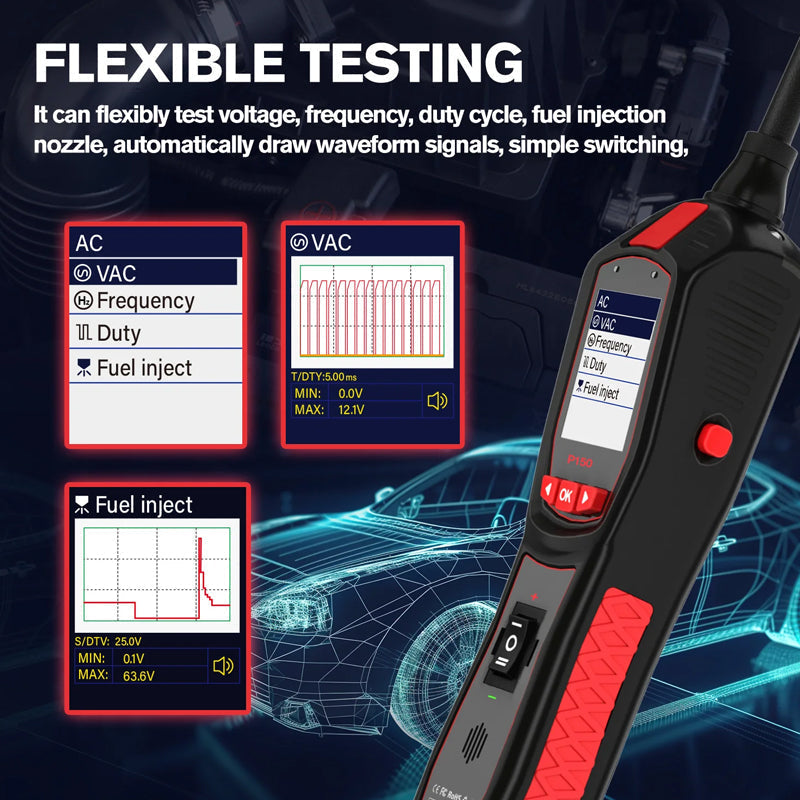

VERSATILE TESTING MODES - Test voltage, frequency, duty cycle, and fuel injectors with waveform display. This comprehensive functionality allows you to diagnose a wide range of electrical issues with a single, powerful tool.

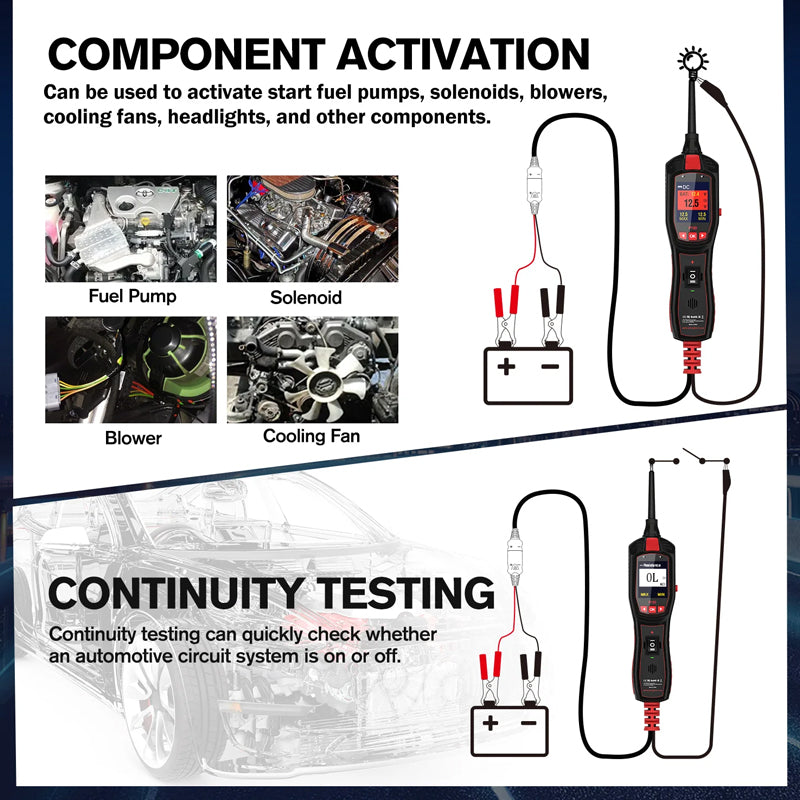

COMPONENT ACTIVATION - Directly power and activate components like fuel pumps, cooling fans, and headlights from the tool. This helps you quickly verify component functionality without needing to use the vehicle's own power.

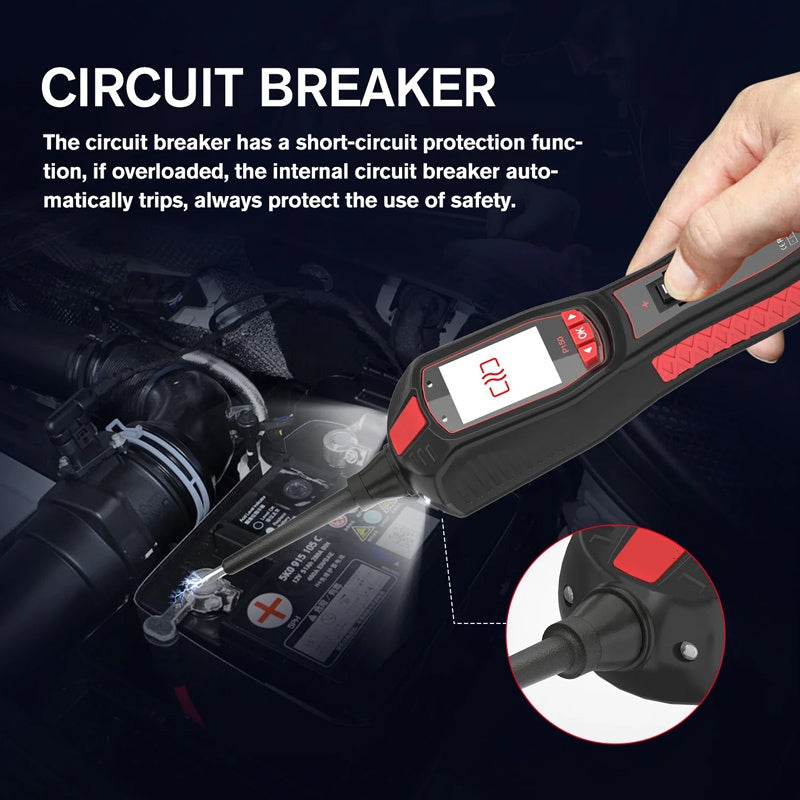

BUILT-IN SAFETY PROTECTION - Features an integrated circuit breaker that automatically trips to prevent damage from overloads or short circuits. This crucial safety measure protects both the tool and the vehicle's sensitive electrical systems.

EXTRA-LONG REACH CABLE - Equipped with a 6-meter cable, providing ample length to comfortably reach any part of the vehicle. You can easily test circuits from the front to the rear without restriction or repositioning.

CLEAR COLOR DISPLAY - The TFT color screen clearly presents all readings and waveforms, even in various lighting conditions. This ensures you can easily interpret the diagnostic data for more efficient troubleshooting and repair.

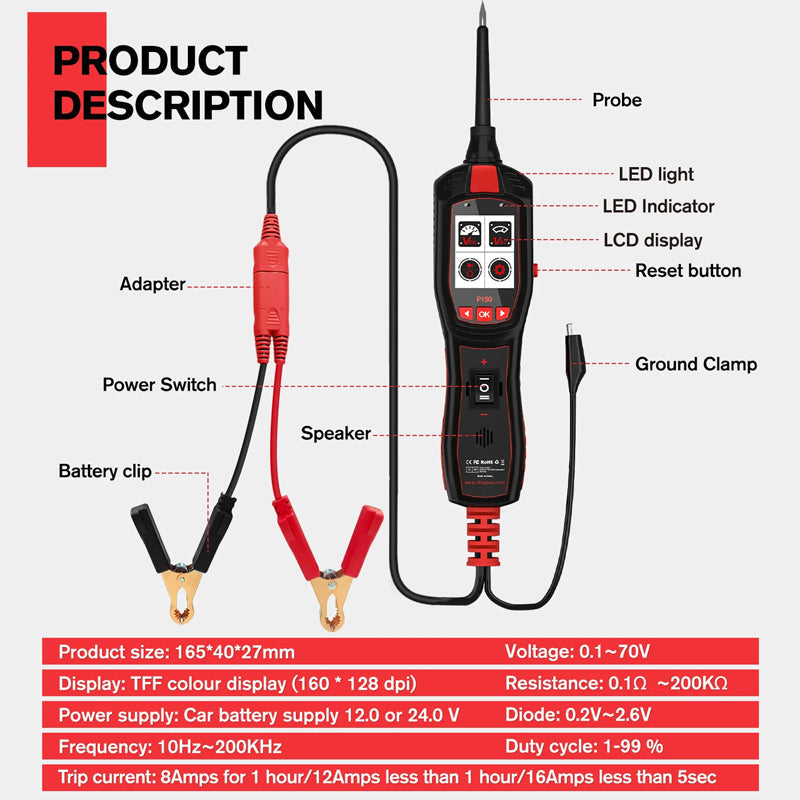

SPEC

Color: Black

Material: ABS

Size: 165*40*27mm

Voltage: 0.1~70V

Display: TFF colour display (160*128 dpi)

Resistance: 0.1Ω ~200ΚΩ

Power supply: Car battery supply 12.0 or 24.0 V

Diode: 0.2V~2.6V

Frequency: 10Hz~200KHz

Duty cycle: 1-99 %

Trip current: 8Amps for 1 hour/12Amps less than 1 hour/16Amps less than 5sec

Cable Length: 6m (19.7 ft)

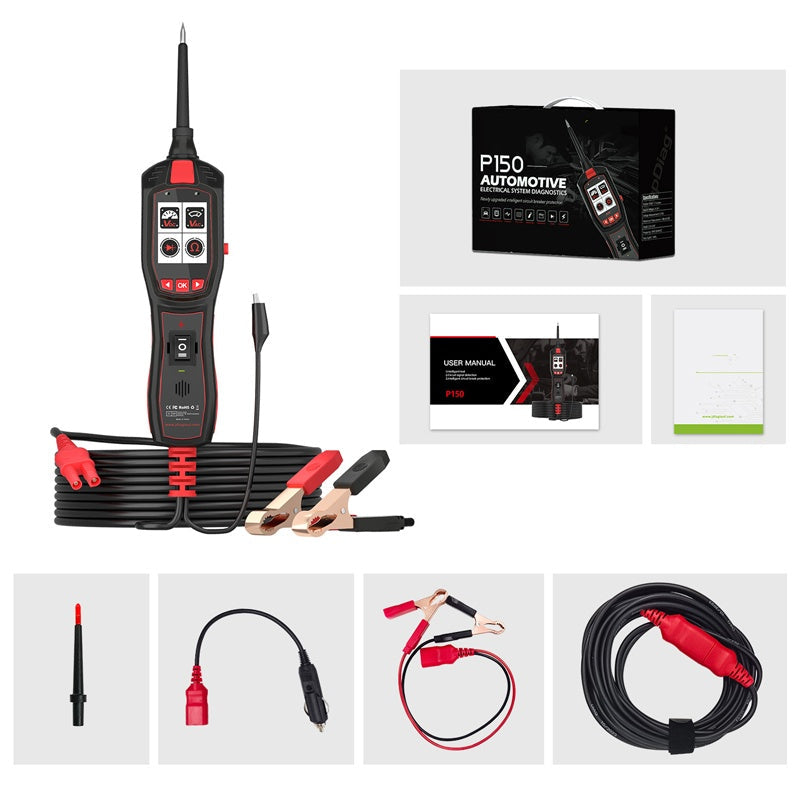

PACKAGE INCLUDES

NOTES

Always wear appropriate safety gear, including eye protection, when working with vehicle electrical systems.

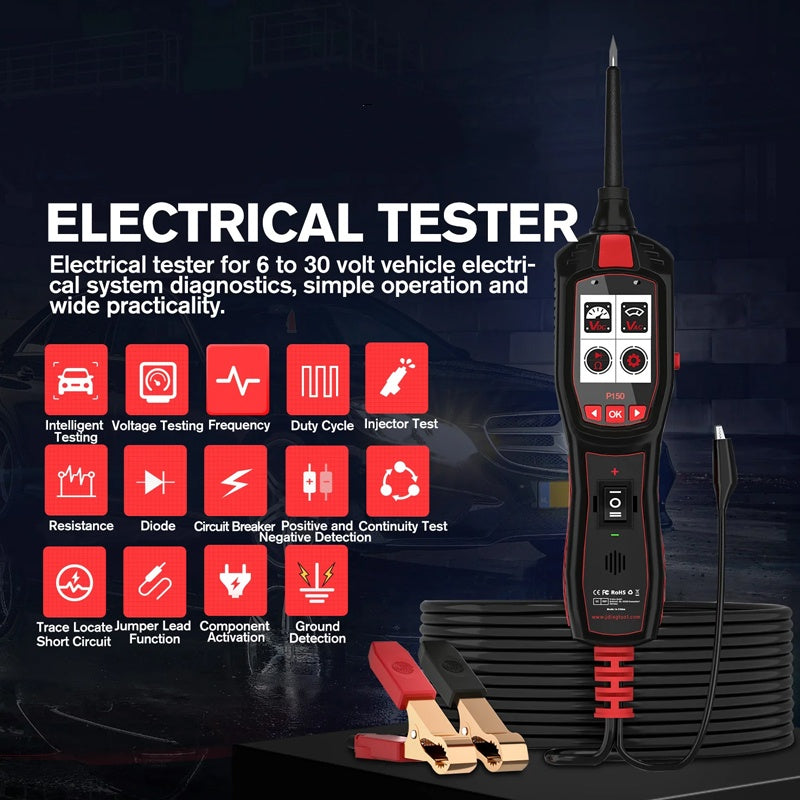

This tester is designed for 6V to 30V DC vehicle electrical systems. Do not use it on AC circuits or voltages outside this range.

Please read the user manual carefully before operation to understand all functions and safety precautions.
